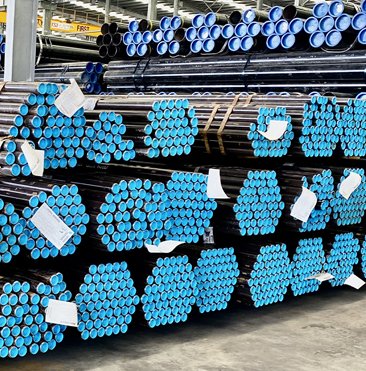

Seamless Steel Pipe
Seamless steel pipe is manufactured as an integral tubular product without welded seams, offering uniform wall thickness and excellent pressure-bearing performance. It is widely used in oil and gas transmission, chemical pressure piping, boiler heat exchangers, and mechanical structural applications. Custom sizes are available with complete quality certification documents.
Seamless Integral Forming

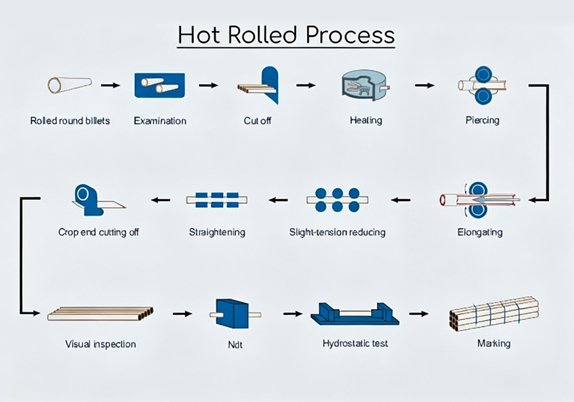

Produced by hot piercing or cold drawing processes, the pipe body contains no welded seams. This ensures uniform strength distribution and eliminates stress concentration and leakage risks associated with welds.
High Pressure-Bearing Capacity
Uniform wall thickness and strong internal pressure resistance make it suitable for high-pressure and ultra-high-pressure fluid transmission systems, with higher safety margins than welded pipes of comparable specifications.
Corrosion and Heat Resistance
Available in carbon steel, alloy steel, stainless steel, and nickel alloy grades to meet requirements for acidic, alkaline, solvent-rich, corrosive, and high-temperature service conditions up to 650°C depending on material grade.
High Dimensional Accuracy
Outside diameter and wall thickness tolerances are strictly controlled, with low ovality and excellent surface finish. Cold-drawn pipes can achieve higher precision and are suitable for precision machining applications.
Wide Size Range and Flexible Customization
Available from 6 mm to 1200 mm outside diameter and wall thickness from 1 mm. Fixed length, random length, trial orders, and bulk procurement requirements can all be supported.
Certified Quality Documentation
Products are supplied with complete material certificates and inspection reports. Third-party inspection, pressure pipe component manufacturing certificates, and API-related documentation can be provided upon request.
| Parameter | Hot-Rolled Seamless Steel Pipe | Cold-Drawn / Cold-Rolled Seamless Steel Pipe | Remarks |
|---|---|---|---|
| Outside Diameter Range | Φ32 ~ Φ1200 mm | Φ6 ~ Φ200 mm | Non-standard sizes available upon request |
| Wall Thickness Range | 3 ~ 150 mm | 1 ~ 20 mm | — |
| Delivery Length | 4 ~ 12 m fixed length | 1 ~ 8 m fixed length | Random length available by agreement |
| OD Tolerance | ±1.0% ≥ ±0.5 mm | ±0.5% ≥ ±0.2 mm | Accuracy class subject to selected standard |
| Wall Thickness Tolerance | +15% / −12.5% | +12% / −10% | — |
| Total Length Straightness | ≤ 0.2% × pipe length | ≤ 0.2% × pipe length | Local straightness ≤ 2 mm/m |
| Service Temperature | −40°C ~ +650°C, depending on material grade | — | |
| Maximum Working Pressure | Calculated according to OD × WT × material grade; up to 1000+ bar for suitable designs | — | |
| End Preparation | Plain end / Threaded end / Beveled end | Plain end / Threaded end / Beveled end | Optional according to project requirements |
| Surface Treatment | Bright finish / Oiled / Phosphated | Bright annealed / Phosphated / Painted | Optional surface treatment available |
Oil & Gas
Used for oil and gas gathering pipelines, casing, tubing, and high-pressure fluid transmission systems in compliance with API 5L and API 5CT requirements.
Chemical Processing Plants
Suitable for corrosive media pipelines, reactor inlet and outlet piping, and heat exchanger tube bundles under acidic, alkaline, and aggressive chemical service conditions.
Boilers and Pressure Vessels
Applied in high-pressure steam transmission and heat exchanger tubes, using heat-resistant alloy steels in accordance with applicable boiler and pressure equipment standards.
Machinery Manufacturing
Used for hydraulic cylinder barrels, precision transmission tubes, and structural components requiring uniform wall thickness, machining allowance control, and dimensional accuracy.
Construction and Foundation Engineering
Used for steel structural columns, pile pipes, and supporting members where high-strength low-alloy materials provide reliable load-bearing performance.
Marine and Offshore Engineering
Suitable for seawater piping, hull structural members, and offshore platform jacket structures, with corrosion-resistant material options available for marine service.
